MILLING MACHINES - FLOOR TYPE MILLING MACHINE

MECOF CS 105 G - CNC SELCA AUTOMATIC HEAD

Condition:

X AXIS TRAVEL

4300 mm

Y AXIS TRAVEL

1000 mm

Z AXIS TRAVEL

1700 mm (VERTICAL)

TABLE DIMENSIONS

6000 X 1060 mm

TABLE CAPACITY

8 ton x meter

T SLOTS NR

SPINDLE NOSE TAPER

ISO 50

SPINDLE SPEED ROTATION

1250 rpm

GEAR NR

CNC

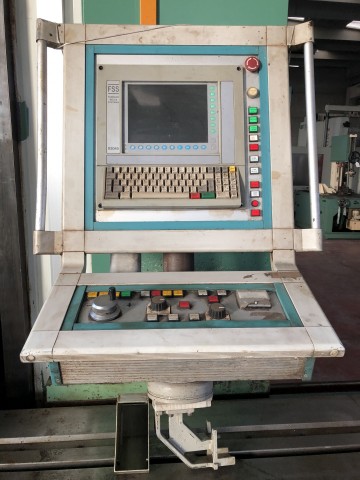

SELCA S-3045 - machine retrofitted in 2002

MAIN SPINDLE DRIVE

24 kw

TOTAL WEIGHT

21.000 kg

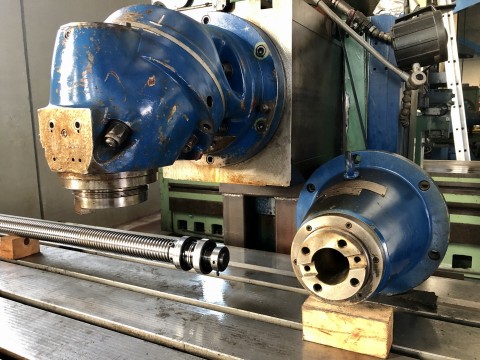

1 speed multiplier ISO 40, 1 universal automatic milling head ( only rear corp) 1? division, 1 extension spindle attachment ISO 50
